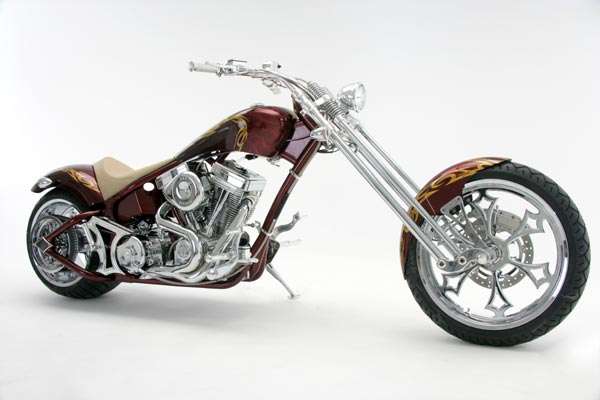

Dragon Models Specifications

New for 2016 Dragon models, all styles, are available as a Frame Kit and Rolling Chassis in addition to Complete bikes.
Dragon Models except Bobber are approved for sale in Canada.

FRAMES:

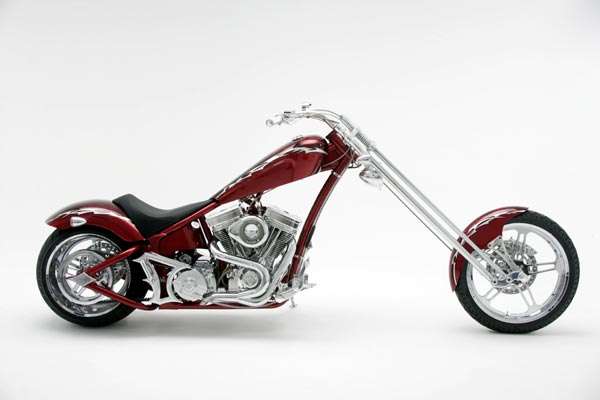

• Rigid OR Softail Chopper Frame 45 degrees rake, 6" backbone stretch, 7" downtube stretch
• Rigid OR Softail Standard Frame 42 degrees rake, 6" backbone stretch
• Powdercoated finish on Frame &Oil Bag
• Steel Struts w/polished insert

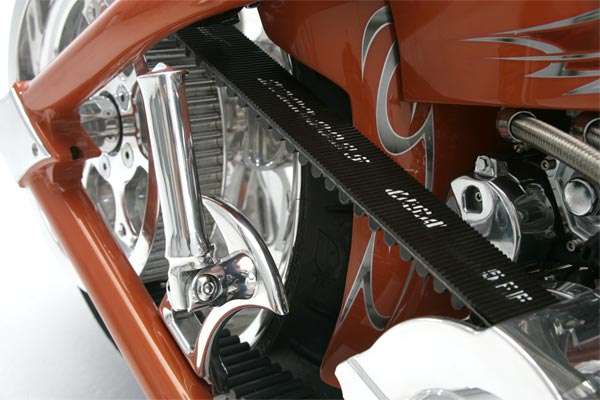

• Right Hand Drive set up with 330 rear tire and 2" Rear Drive Belt
• Rear mounted chrome kickstand

SHEET METAL:

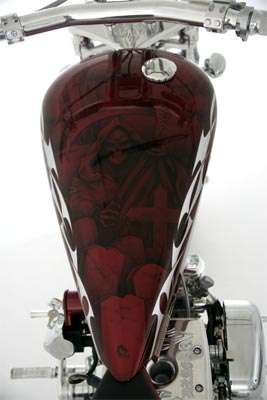

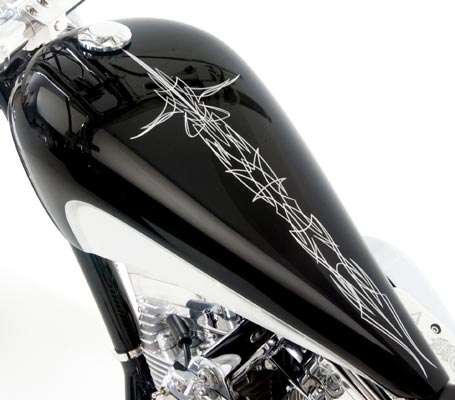

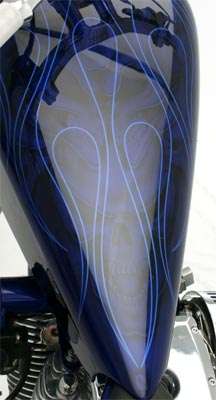

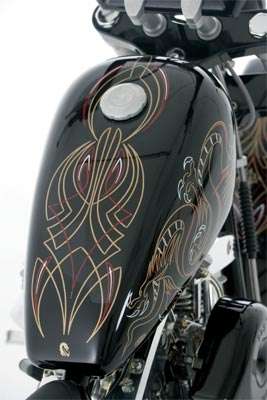

• Dragon style scalloped tank
• Dragon style 21" café front fender
• Dragon style rear fender
• All Steel tanks and fenders - NOT composite

ENGINE - DRIVE TRAIN - EXHAUST:

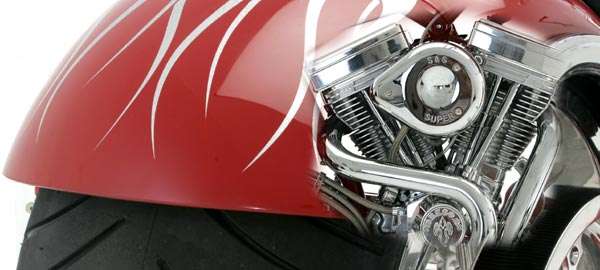

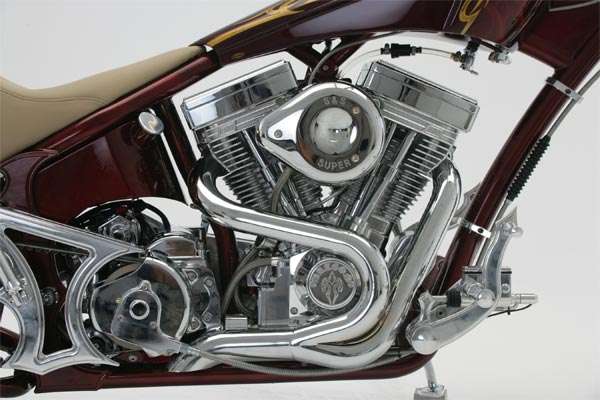

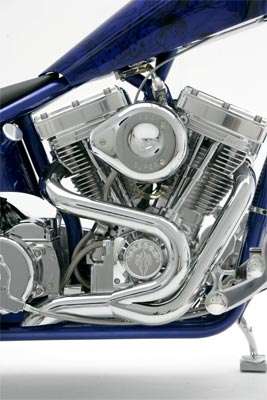

• S&S 113” Engine –fully Polished

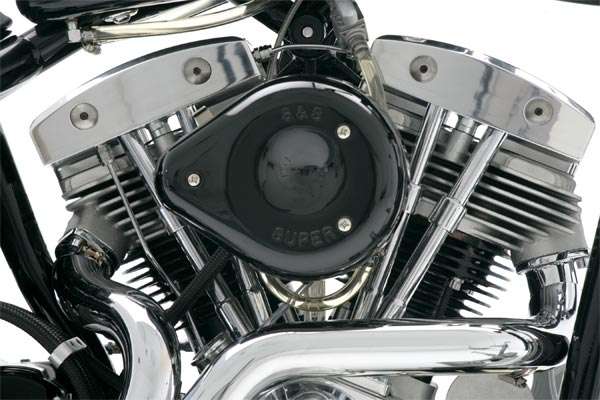

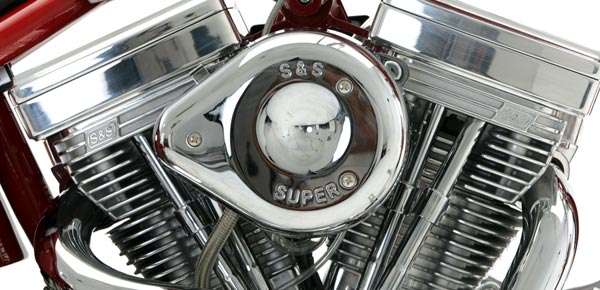

• S&S Super “G” Carb and chrome S&S air cleaner cover
• Rivera Primo PowerDrive RHD 6 Speed Transmission
• Primo Brute IV Extreme – 3” Open Belt Drive

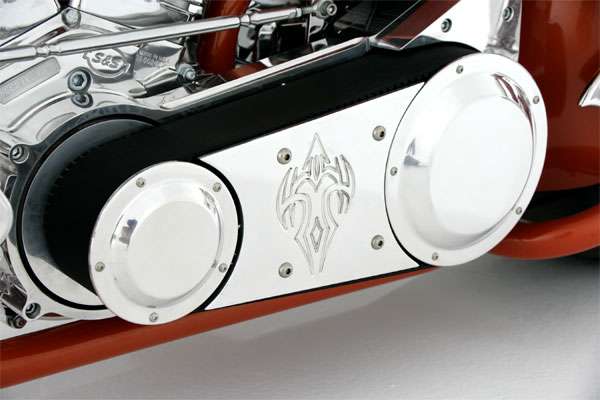

• Billet Belt Guard with Dragon Tribal logo
• Dragon Style 2 into 1 Exhaust w/Heat shields

Available Options:
• Optional 117” S&S or 124” S&S Engine
• Optional Primo Brute IV – 3” Open Belt Drive

FRONT END:

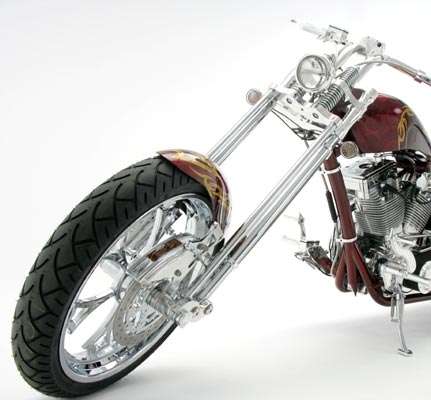

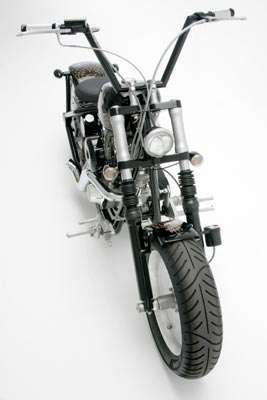

• Dragon Wide Glide style 41MM Front End Standard on All Models
• Bourget/Dragon style Springer Front End is available upgrade on All Models
• Springer Front End not available on Dragon Bobber models
• Dragon style "T" Bar handlebars - choice of sizes

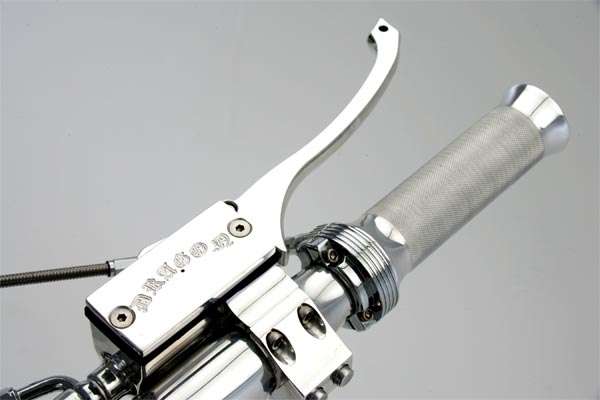

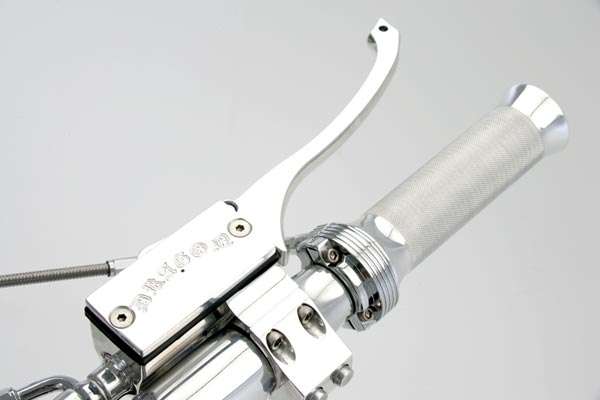

• Dragon style Grips, Levers, Handlebar controls& Mirrors
• Dragon style Mirrors
• Billet style headlight

WHEELS AND FORWARD CONTROLS

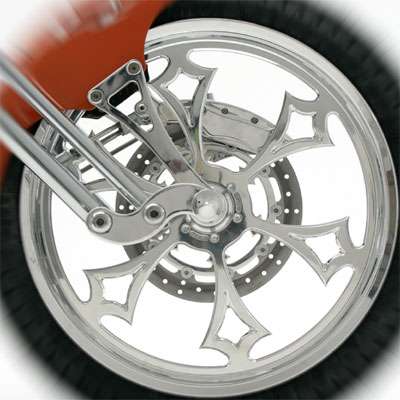

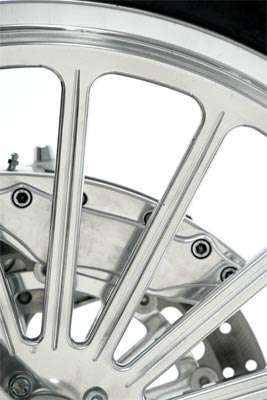

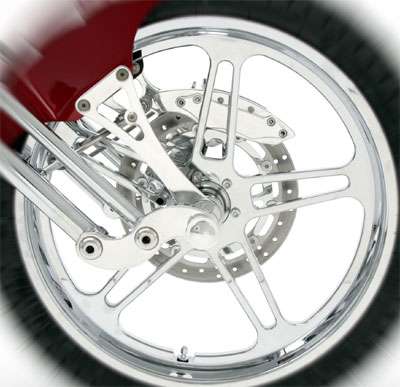

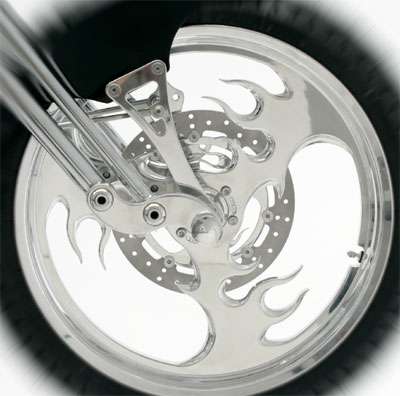

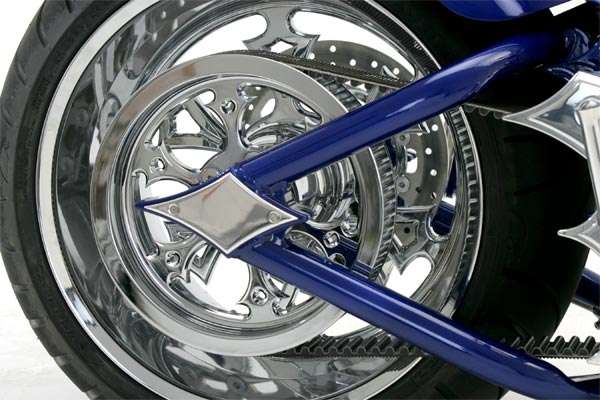

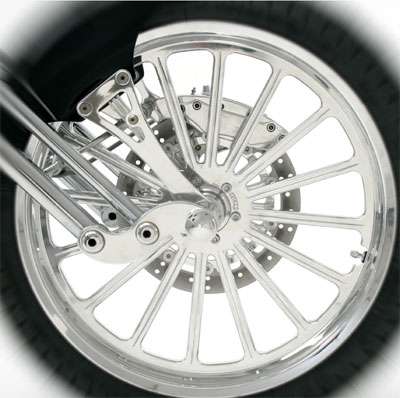

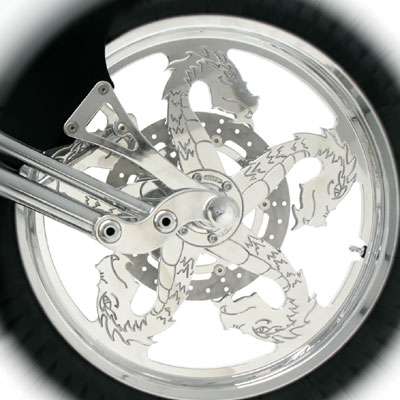

• Choice of Dragon wheel designs Stallion, Pyro, Dragon, Spoken, or Dragon Tribal
• Matching pulley and rotor carriers
• Standard 21" x 3.50" Front wheel and 120-70-21 Avon front tire

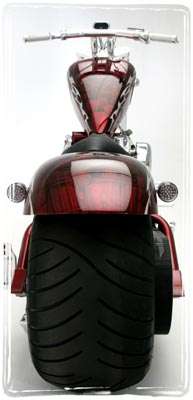

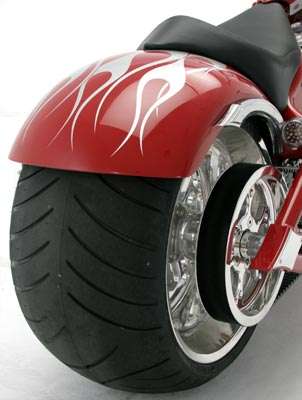

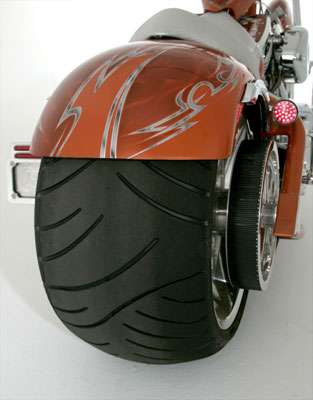

• Standard 17" x 11.5" Rear wheel and 330-17 Avon rear tire
• Optional Chrome wheel package

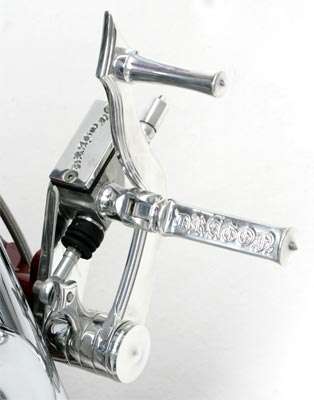

• Dragon style forward controls

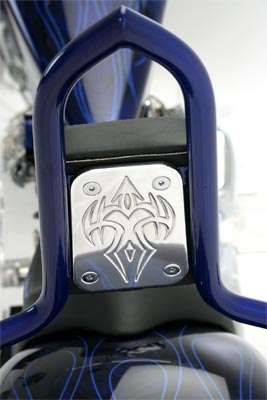

• Passenger Pegs and Billet Mounting kit STD on All Models

BRAKES
• Dragon 6 piston Calipers front & rear
• Dragon Rotors - matching wheels - front & rear
• Braided Brake lines front & rear

ELECTRICAL AND WIRING

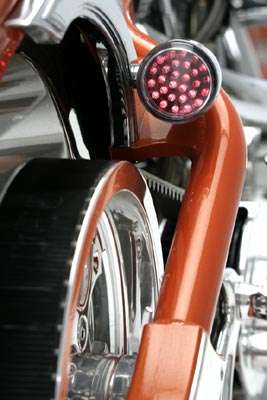

• Dragon LED style turn signals front & rear & tail light

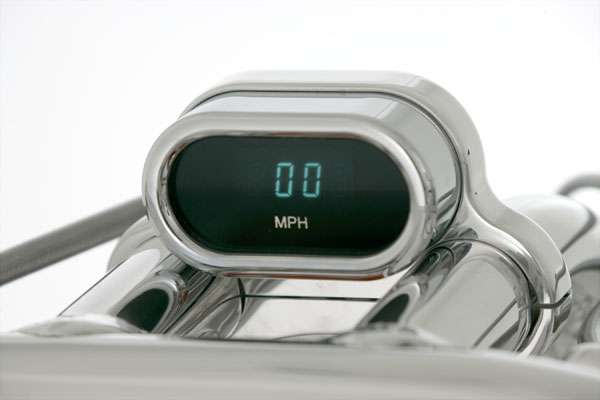

• Dakota Digital 3" Oval speedo/odometer unit mounted to handlebars

SEATS

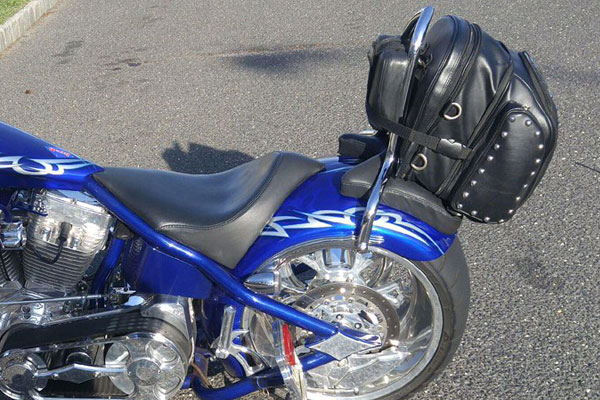

• Dragon Solo seat -British Vinyl in standard colors - smooth with Dragon label

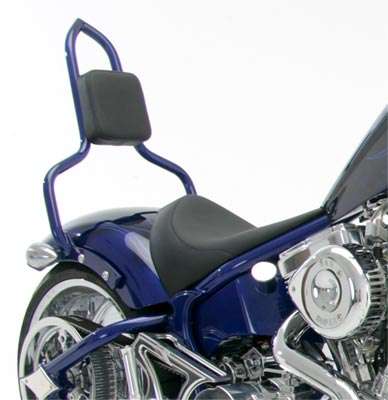

• Dragon Passenger Pad Standard on All Models

Standard Colors

• Black w/Black stitching
• Tan w/Tan stitching
• Red w/Red stitching
• Gray w/Gray stitching

Seats can be ordered in any color vinyl or leather for an additional cost

PAINT
Dragon Models are std with a Powdercoated Frame & Oil Bag with Sheet Metal painted to match.  Any Color and Graphics package are available as an upgrade.

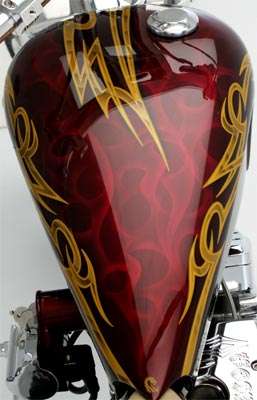

Dragon Tribal Colors

Upgrade

Dragon Scallops Colors

Dragon Skulls Colors

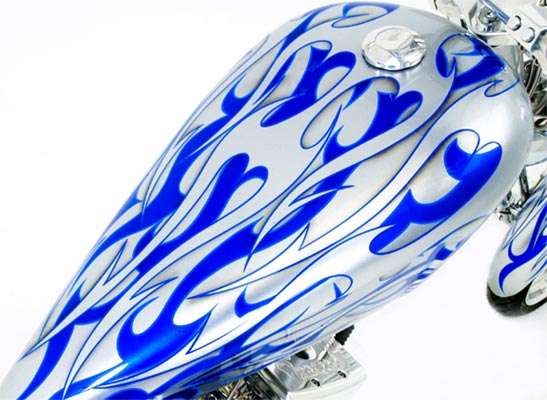

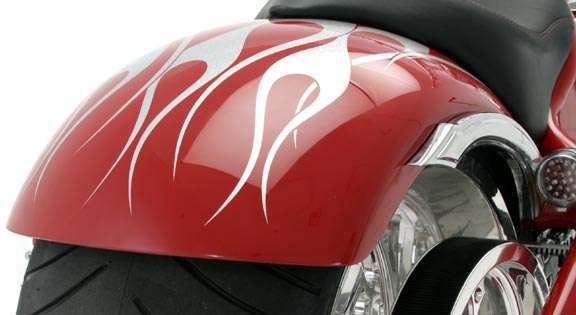

Dragon Flames Colors

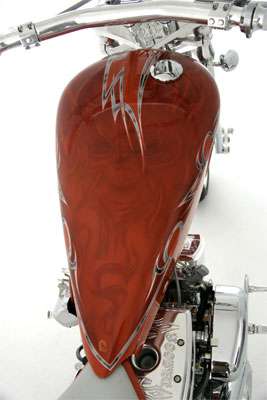

Upgrade: Kandy Colors/Ghost Flames
Below flames will be more subtle because they will be under the kandy

For custom paint ideas refer to sinthium.com

Dragon Bobber Specs:

The Dragon Bobber is no longer in production, the information here is strictly for your use should you be looking to purchase a used model either from a Bourget dealer or an individual. The Dragon Bobbers were a limited production model first built in 2006 and the last production models were produced in 2008. Dragon Bobbers were not approved for sale in Canada.

The Specifications listed below are typical of how the Dragon Bobbers were produced, but please keep in mind as with all Bourget motorcycles, they are built to order and customized to meet the needs of each individual buyer so units you find for resale may or may not be built to these exact specifications.

• Flat Black or Gloss Black Paint (most of the models were done in these 2 colors)
• 113” S&S Engine – Cast/Natural finish
• JIMS 5 Speed Transmission – Cast/Natural finish
• Primo Brute III Closed primary – Natural finish inner & outer primary covers

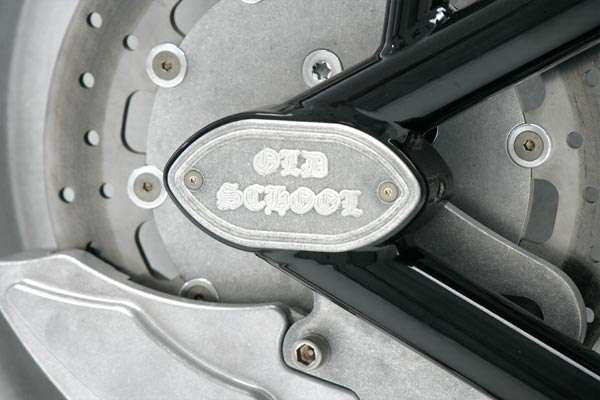

• Old School Front End – wide glide with rubber fork covers
• Solid Wheels – Cast/natural finish, front & rear
• Wheel Sizes: Front 16” x 5.0” with 150-18-16 front tire, 16” x 5.0” Rear with 200-80-16 Tire
• Bobber Style Exhaust

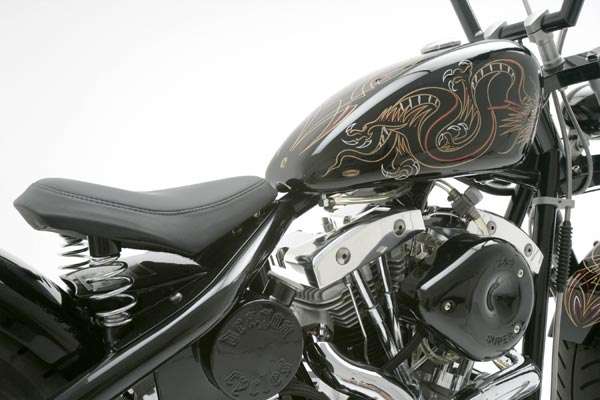

• Bobber “Peanut” style gas tank, Flat style front & rear fenders
