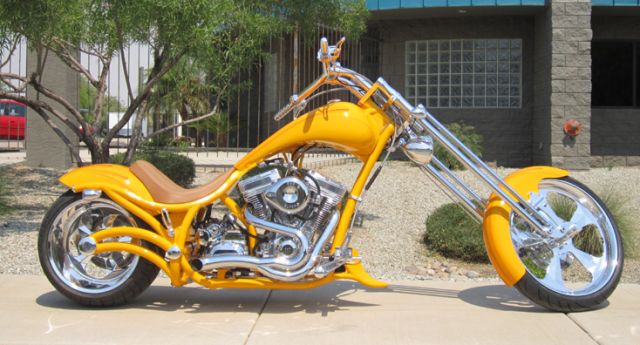

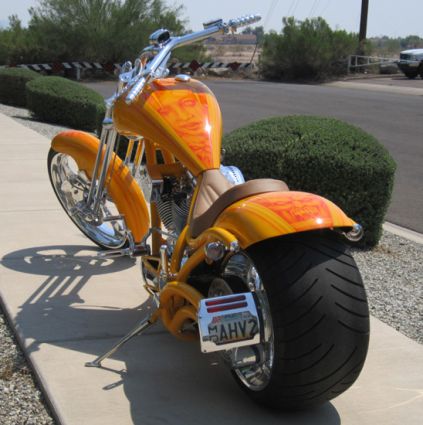

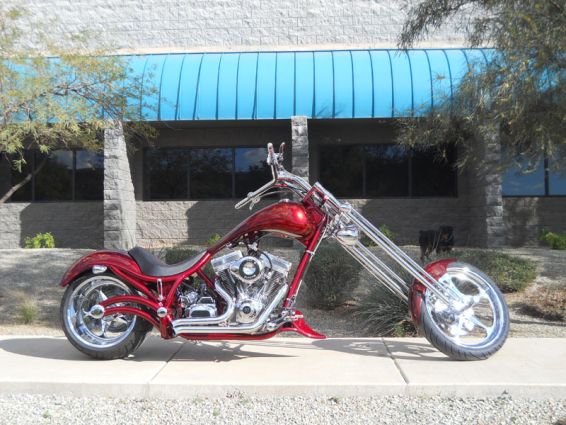

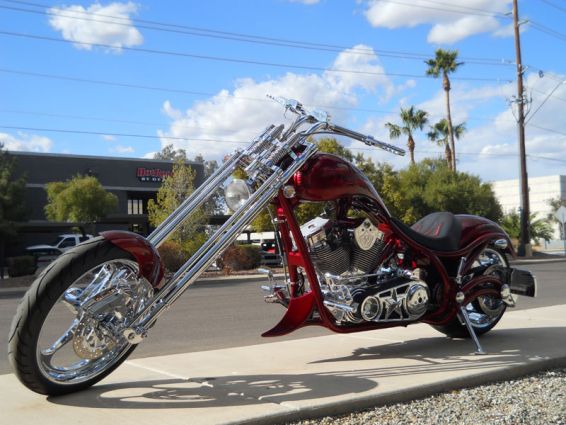

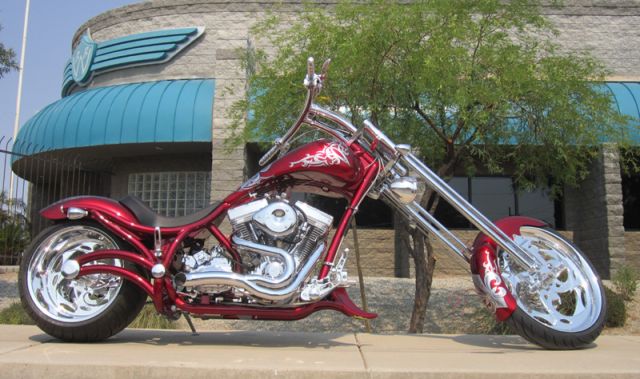

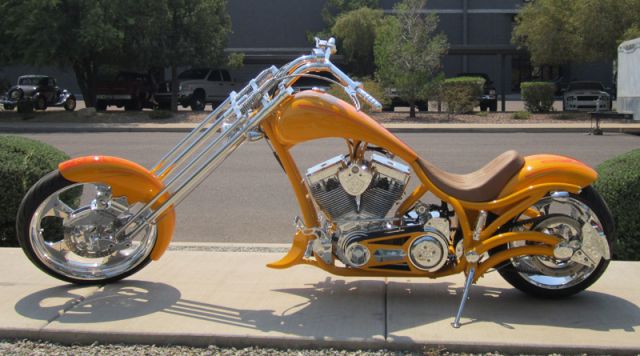

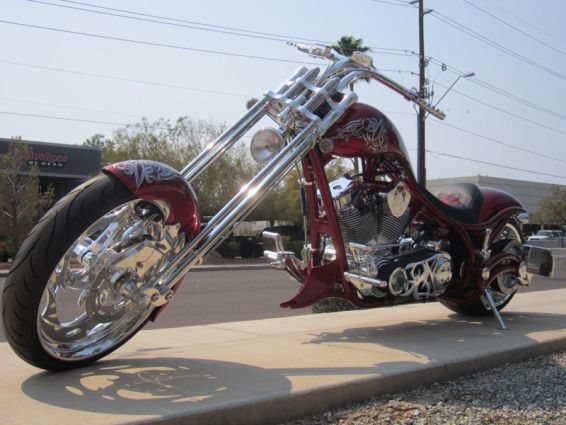

Fat Daddy

Now Standard with 330 Rear tire
U.S. Patent No's: 5,975,230 and 6,575,260

Note: This model IS AVAILABLE for sale in Canada>

FRAME:
Totally Radius frame- Backbone, Down Tubes, Swingarm, Sissy Bar

Standard Features:
• Neck Rakes Available: 45 or 47 degrees
• Backbone Stretch: 6"
• Downtube Stretches available: 2" or 7"
• Radius Backbone and Down Tubes Standard
• Swingarm: Radius Fat Daddy
• Air Dam
• Radius Removable Sissy bar w/backrest pad
• Pulley/Rotor drive side brake set up
• BBW Patented Belt Drive Cush Drive Jacksahft with centered Drive Train
• BBW Patented Oil in Frame/Drop seat chassis design
• Chrome kickstand
• Progressive Suspension Softail style Shocks

Available Options:
• Kandy Color or 2 stage powdercoat on frame
• Painted Frame - Molded or Paint only
• Adjustable Lowering kit
• Cobra Style Gas Tanks with Exposed Backbone

SHEET METAL:
Standard Features:

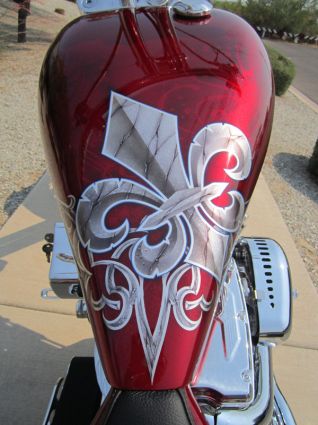

• Flush Mount Radius 6 gallon gas tank w/paint saver & • BBW billet gas cap
• BBW Steel 21" Café style front fender
• BBW Steel Rear Fender - standard length or Beach
Cruiser length

Available Options:
• Cobra Style Gas Tanks with Exposed Backbone

ENGINE:
Standard Features:
• 124" S&S Engine Fully Polished w/ S&S Carburetor

Available Options:

• 124" Engine - Fuel Injected
• BBW Chrome Rocker Boxes
• Diamond Cut Heads & Cylinders
• Powdercoated Heads & cylinders
• Powdercoated Drive Train
• Custom D&M Air Cleaners

DRIVE TRAIN:
Standard Features:
• JIMS/BBW Exclusive Fat 5 Overdrive Transmission

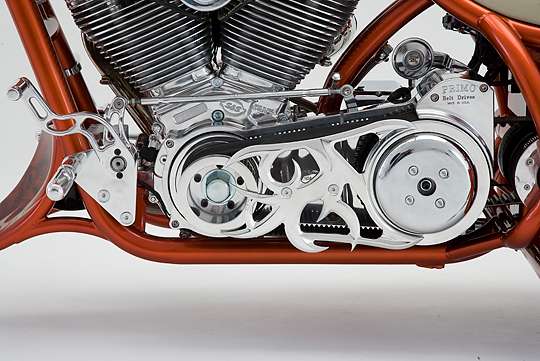

• Primo Brute IV - 3" Open belt drive clutch
• BBW Billet Belt guard

Available Options:
• Primo Brute V -3-1/2" open belt drive clutch
• Primo Slotted style belt guard

EXHAUST:
Standard Features:
• BBW 2 into 1 Exhaust - Chrome w/Heat Shields
• EFI Exhaust - 2 into 1 - standard on EFI Engines

Available Options:
• Custom Exhausts Available - One Off, Stepped, High performance, etc.
• BBW Swoopies, Little Mama's, or Zoomies available

FRONT END & FORWARD CONTROLS:

Standard Features:

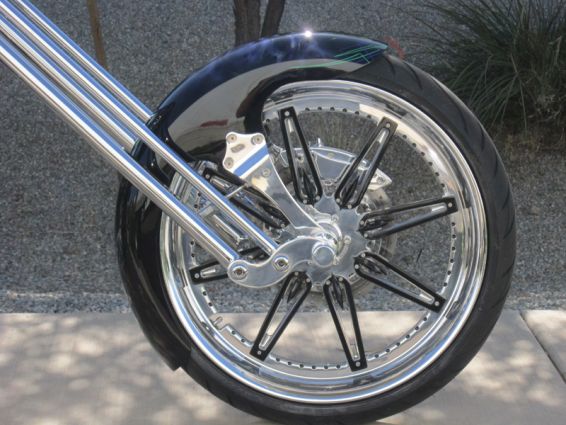

• BBW Springer Front End
• BBW Billet Forward Controls (Any size to fit rider, from 3" under to 6" Extended)
• BBW Billet Handlebar Controls & Levers
• BBW Billet Handlebars - choice of style, rise & pullback to fit any rider
• BBW Billet Rear Passenger Pegs to match controls
• BBW Billet Shift Linkage

Available Options:
• BBW Floorboard Foot Pegs for Rider & Passenger
• Powdercoating on Front End - Springs, forks, Handlebars, etc.

WHEELS & TIRES:
Standard Features:
• Choice of BBW Wheels styles

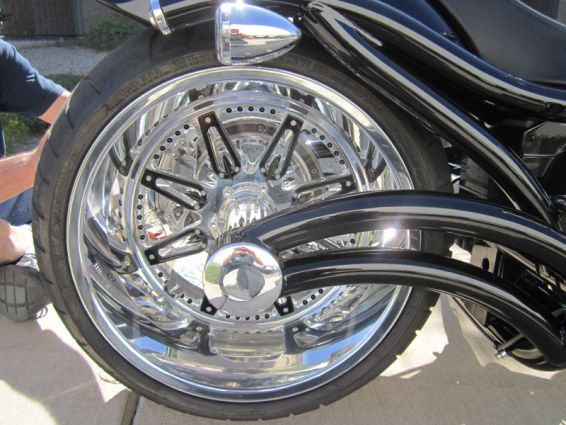

• 21" x 3.50" Front with 120-90-21 Tire and 17" x 11.5" Rear with 330 Tire

Available Options:
• Accent Powdercoat on wheels- varies by style, please check availability before ordering

LIGHTS, GAUGES, MISC.:
Standard Features:
• Dakota Digital Speedo mounted to Handlebars
• BBW Billet LED tail light/license plate bracket - Radius style on specific Models
• BBW Billet Mirrors
• BBW LED Front & Rear turn signals and Billet switch housings
• BBW Billet Axle adjustor caps and Axle covers

Available Options:
• Opt. Rocker Box mounted Speedo w/Rubber mount bracket

PAINT & GRAPHICS:
Standard Features:
Choice of Paint Color and Graphics - $1500.00 is included in price of bike for paint. The sky is the limit - the difference between the paint cost and $1500.00 will be charged accordingly.

Available Options:
• Painted Headlight
• Painted Teardrop Air Cleaner Cover (n/a on EFI bikes)

SEATS - PASSENGER PADS - ETC.
Standard Features:
Any color vinyl w/multi color coordinating stitching -includes matching passenger pad backrest pad, and air dam bra

Available Options:
Leather- any color, Snake Skin, Ostrich, Alligator, Crocodile, Stingray, Embossed Leathers and Imitation Exotic skins such as Alligator, Ostrich and others.

-Note: Exotics include a leather side panel and exotic insert on rider's seat only - passenger seats, backrest pads and air dam bars are priced in addition to rider's seat.>

Gel Inserts in Rider's seat, Passenger pad or both
Custom stitching on passenger seat and backrest pad

CHROME PACKAGES
Chrome Packages are available at an additional cost. BBW does NOT offer a warranty on chrome packages. Chrome Plate at your own risk!!
