Low-Blow
U.S. Patent No., 5,975,230
Note: This model NOT approved for sale in Canada at this time.
Low-Blow models are available in two different styles:
• Low-Blow 250 Chopper or STD models with 250 Rear
tire and Right Side Drive set up
• Low-Blow 200 Chopper or STD models with 210 Rear
tire – Left Side Drive set up
FRAME
Standard Features:
• Neck Rake on STD Models: 38 or 40 Degrees
• Neck Rake on Chopper Models: 45 or 47 Degrees
• Backbone Stretch on STD Models: 3” or 5”
• Backbone Stretch Choppers: 6”
• Downtube Stretch Choppers: 4” or 6”
• Radius Low-Blow Style Swingarm
• BBW Patented Drop Seat-Oil in Frame chassis design
• Hard Anodized/Coated Rear Pulley
• 2” Rear Drive Belt – Carbon Fiber Belt
• Chrome Kickstand
• Progressive Suspension Softail ™ style shocks
AVAILABLE OPTIONS:
• Kandy Color or 2 Stage Powdercoat on Frame
• Painted Frame – Fully Molded or Paint Only
• Removable Sissy bar w/backrest
SHEET METAL:
Standard Features:
• BBW Radius Gas Tank - 5 Gallon - with paint saver& BBW billet gas cap
• BBW Steel 21" Café style front fender and 120-90-21
Front Tire
• BBW Steel Rear fender
Available Options:
• BBW Stainless Steel
• 18" Cafe Front Fender w/18" Front wheel Available on STD models
ENGINE:
Standard Features:
• 113" S&S Engine- Fully Polished
Available Options:
• 117" S&S Engine - Polished -Carb or EFI
• 124" S&S Engine - Polished - Carb or EFI
• BBW Chrome Rocker Boxes available
• Diamond Cut Heads & Cylinders
• Powdercoated Heads & Cylinders - any color
• Powdercoated Drive Train- any color; includes cases,
lifter blocks, heads, cylinders, and Transmission case,
other components will be Polished
• D&M Air Cleaners - various styles to choose from
DRIVE TRAIN:
Standard Features:
• Rivera Primo Powerdrive 6 (TM) Polished 6 Speed Transmission
• Primo Brute III belt driven clutch w/closed primary set
up
Available Options:
• Primo Brute IV - 3" Open Belt Drive with BBW Billet Belt
Guard
• Primo Slotted -Cage style Belt Guard
• Rivera Primo Powerdrive 6 Right Side Drive transmission STD on 250 tire models
• EZ Pull Clutch
EXHAUST:
Standard Features:
• BBW 2 into 1 Exhaust - Chrome w/Heat Shields
Available Options:
• Custom Exhausts Available
• BBW Swoopies style, Little Mamas' style, or Zoomies
style
FRONT END & FORWARD CONTROLS:
Standard Features:
• BBW Billet Wide Glide front end with 3 Degrees Raked
Triple Trees
• BBW Billet Forward Controls
• Forward controls available- 1" shorter, STD, and 2", 3",
and 4" Extended
• BBW Rear Passenger pegs
• BBW Billet Handlebars- choice of rise & pullback
dimensions
• BBW Billet H/Bar Controls & Levers
• BBW Billet shift linkage
Available Options:
• Powdercoated Handlebars
• Powdercoated Front Forks
• BBW Springer Front End
• BBW Floorboard style Foot Pegs on Forward Controls
WHEELS & TIRES:
Standard Features:
• Choice of BBW Billet Wheels styles with matching rotors
and pulley
• Front Wheel size 18” x 3.50” with 120-70-18 tire on STD
Models or
• 21” x 3.50” with 120-90-21 tire on STD and Chopper
Models
• 17" x 5.50" Rear with Avon 200 Rear Tire on 200 Models
• 18” x 9.0” Rear with Avon 250 Tire on 250 RHD Models
Available Options:
• Powdercoat accent on wheels- varies by wheel design
LIGHTS, GAUGES, MISC.
Standard Features:
• Standard BBW face speedo on handlebars
• Headwinds Billet Headlight - 5-3/4" - choice of styles
• BBW Billet Mirrors
• BBW LED style front & rear turn signals and billet switch
housings
• BBW Radius LED Tail light/License Plate bracket -
horizontal mount
• BBW Billet axle adjustor caps
Available Options:
• BBW Digital Speedometer w/indicator lights on
handlebar
• Digital Speedometer mounted to Rocker Box w/Rubber
mount bracket
• Tri-Bar style headlight lens
PAINT & GRAPHICS:
Standard Features:
• Solid One Stage Paint is included in price, Kandy and Custom Colors are an upgrade of $700.00.
• All Graphics are an additional charge and are priced according to amount and difficulty of subject matter.
• The sky is the limit when it comes to graphics – check out www.sinthium.com for paint ideas and photo gallery.
Available Options:
• Painted Headlight
• Painted Teardrop Air Cleaner Cover (n/a on EFI bikes)

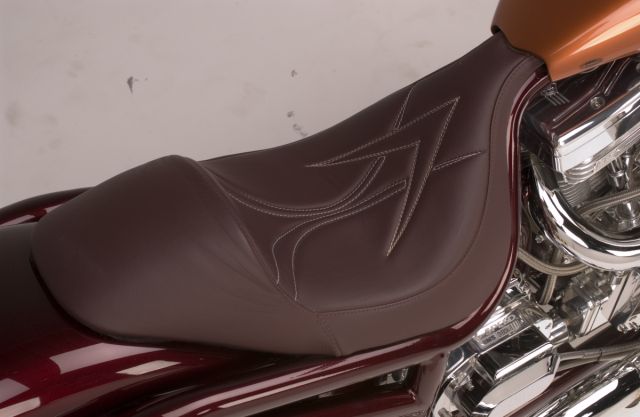

SEATS - PASSENGER PADS - ETC.
Standard Features:
Any color vinyl w/multi color coordinating stitching -includes matching passenger pad and backrest pad
Available Options:
Leather- any color, Snake Skin, Ostrich, Alligator, Crocodile, Stingray, Embossed Leathers, and Imitation Exotic skins such as Alligator, Ostrich and others.
Note: Exotics include a leather side panel and exotic insert on rider's seat only - passenger seats and backrest pads are priced in addition to rider's seat.
Gel Inserts in Rider's seat, Passenger pad or both
Custom stitching on passenger seat and backrest pad
CHROME PACKAGES
Chrome Packages are available at an additional cost. BBW does NOT offer a warranty
