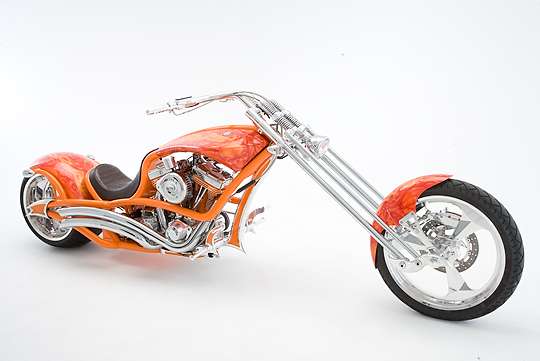

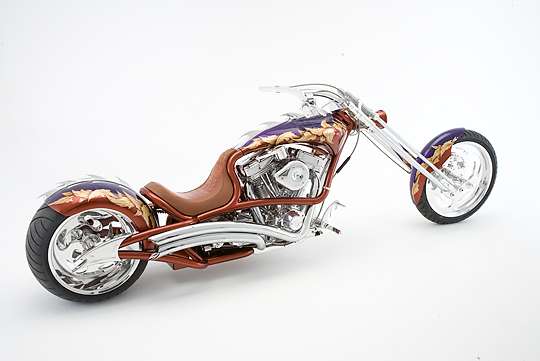

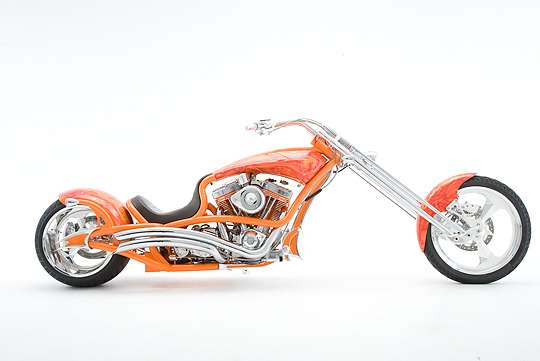

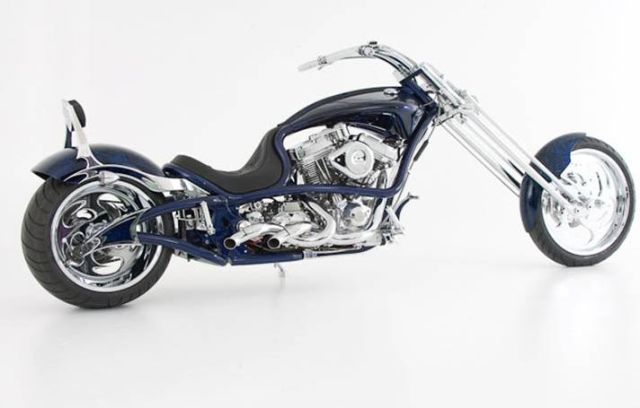

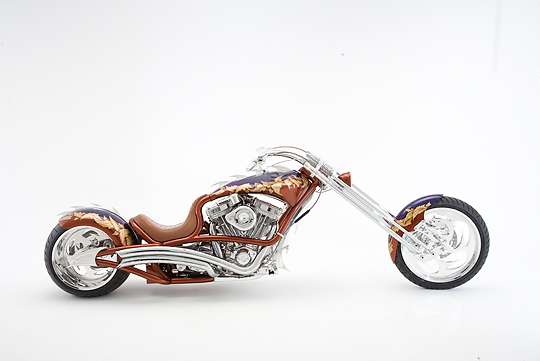

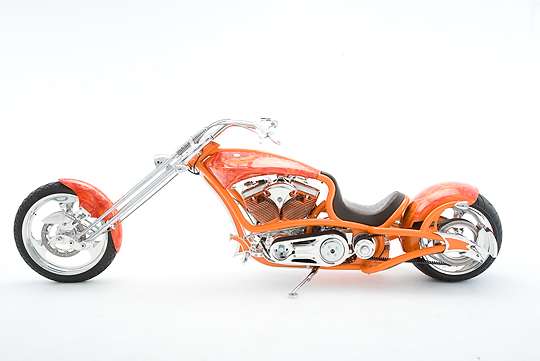

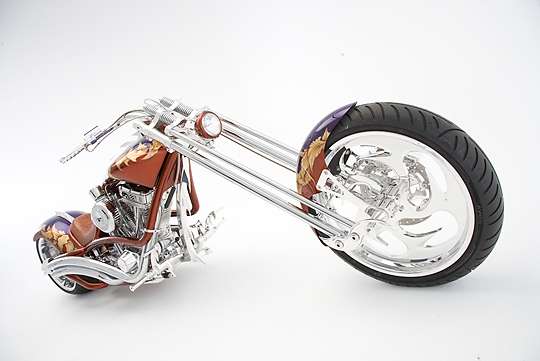

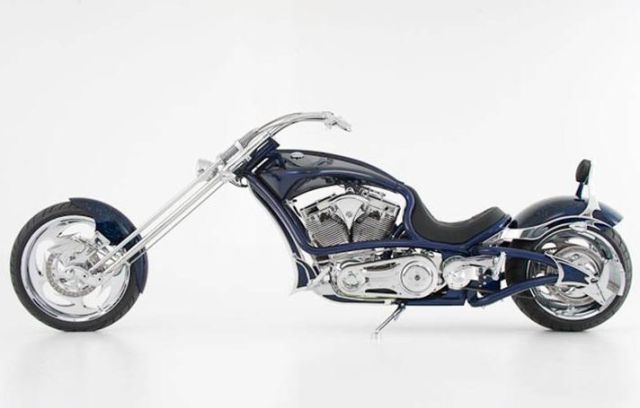

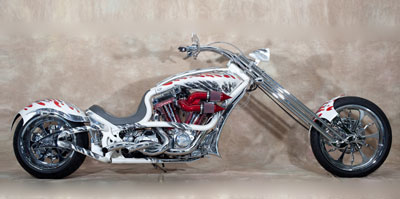

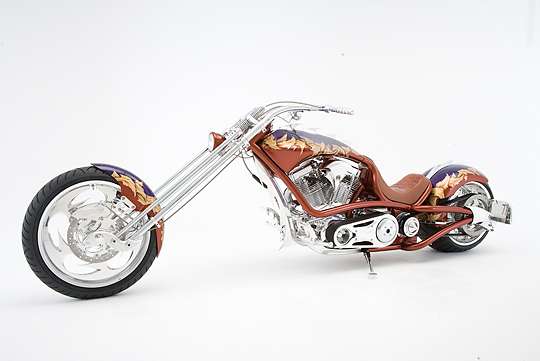

King Kobra & King Kobra SR
Note: T6 King Kobra models with Billet spikes has been retired and is no longer available. Stock photos for reference only
U.S. Patents No’s: 5,975,230 and 6,575,260
FRAME:
• Radius King Kobra RT and King Kobra SR - Radius Backbone, Machined Billet Single Down tube, Radius Rear/Tail Section
Standard Features - STD Model King Kobra RT and King Kobra SR:
• Neck Rake: 50 Degrees, Backbone Stretch: 7”,
Downtube Stretch: 2”
• Extended Rear frame section: 6”
• Exposed Backbone and King Kobra style 2 piece Gas
Tanks
• Extreme Drop Seat chassis

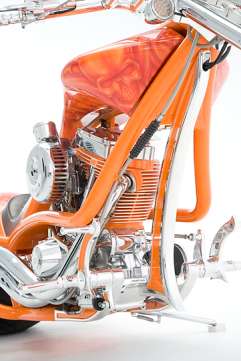

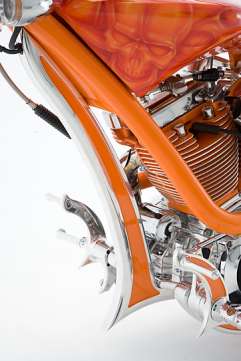

• T6 Machined Billet Downtube and Engine Cradle
• Pulley/Rotor drive side brake set up with Radius License • Plate Bracket
• King Kobra style Cush Drive Jackshaft and External
Primary
• BBW Patented Belt Drive Jackshaft with Centered Drive
train
• BBW Patented Oil in Frame/Drop Seat chassis design
• Chrome Kickstand – Mid Mount
• King Kobra RT is the Rigid/hard tail rear section model
• King Kobra SR has coil over shock suspension hidden
under the rider’s seat
Available Options - Both Models:
• Kandy Color or 2 stage powdercoat on frame
• Painted Frame - Molded or Paint only
• Powdercoated Accents Billet Downtube, Engine Cradle,
Axle Adjustors, Forward control inserts, and Billet Strut
inserts on King Kobra SR model
SHEET METAL:
Standard Features:

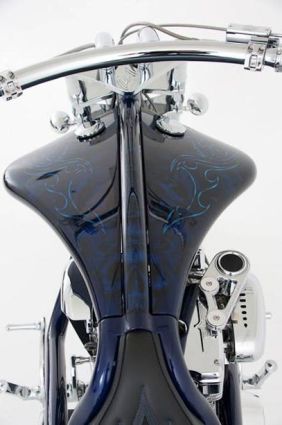

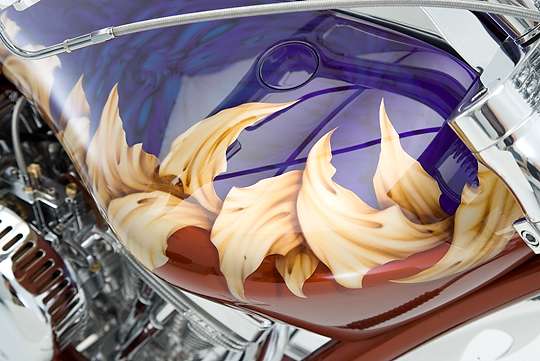

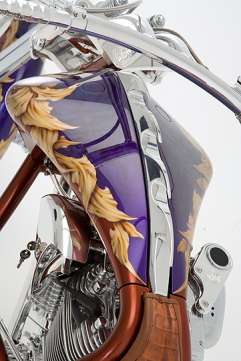

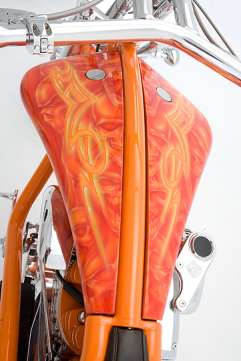

• King Kobra 2 piece Gas Tanks with Exposed Backbone
• BBW STEEL 23" CAFE EXTENDED FRONT FENDER

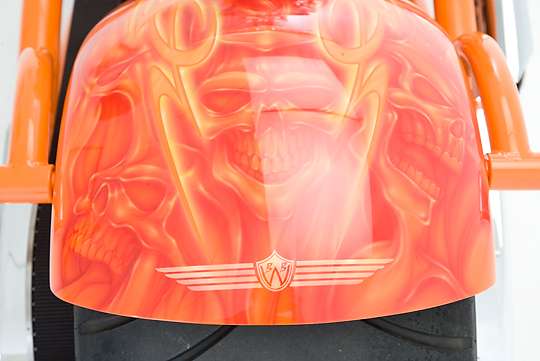

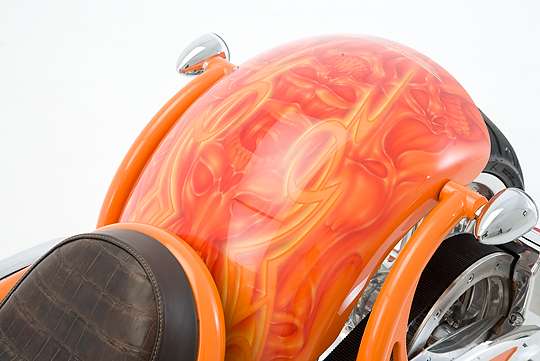

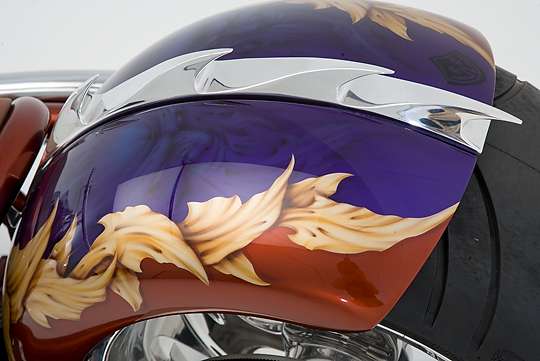

• BBW STEEL REAR FENDER
ENGINE:
Standard Features - STD Model:

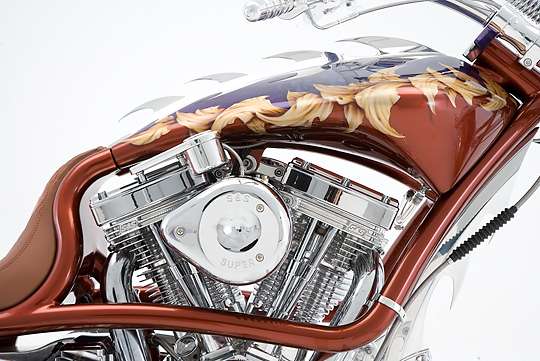

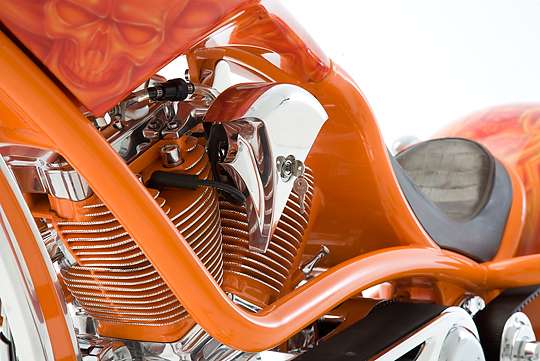

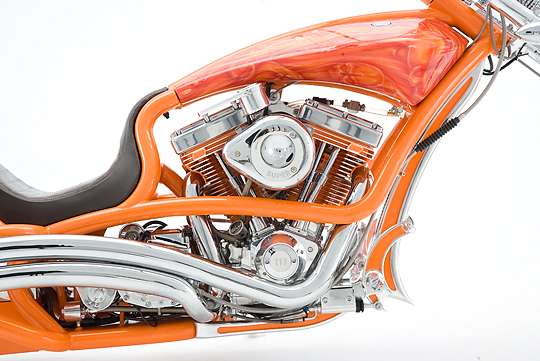

• 124" S&S Engine Fully Polished w/ S&S Carburetor
Available Options:
• 124" Engine - Fuel Injected
• BBW Chrome Rocker Boxes
• Diamond Cut Heads & Cylinders
• Powdercoated Heads & cylinders
• Powdercoated Drive Train
• Custom D&M Air Cleaners
DRIVE TRAIN:
Standard Features:
• JIMS/BBW Exclusive Drop Starter Fat 5 Overdrive
Transmission
• Primo Brute V - 3-1/2" Open belt drive clutch
• Choice of any style BBW billet Belt Guard
EXHAUST:
Standard Features:

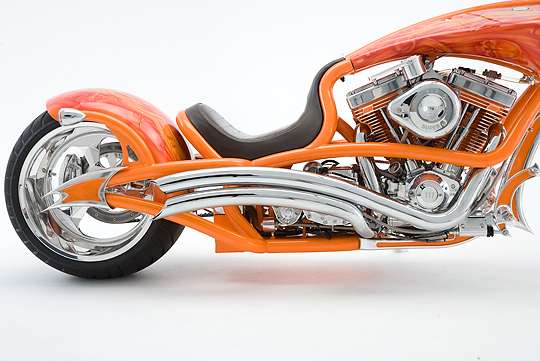

• BBW King Kobra Exhaust standard 2 into 1 style -
Chrome with Full Heat Shield
Available Options:

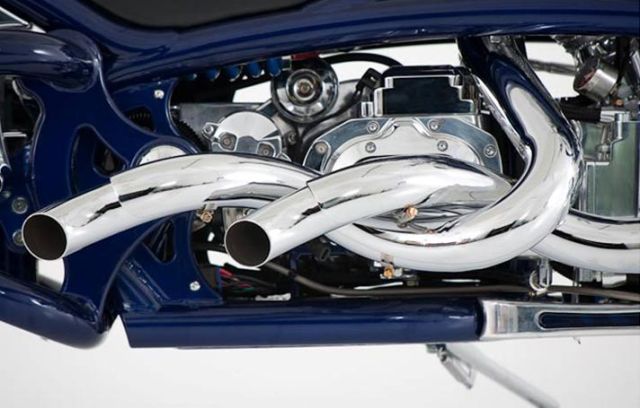

• BBW King Kobra Twisted Duals
• BBW King Kobra Twisted 2 /1
• BBW custom made Exhausts available upon request for add'l charge
FRONT END & FORWARD CONTROLS:
Standard Features:
• BBW King Kobra style Springer front end

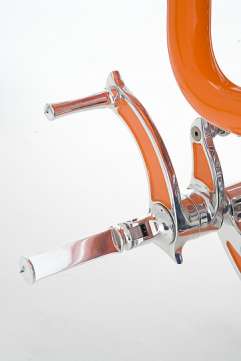

• BBW King Kobra style Forward Controls (Available 3" Under, STD and up to 4" Extended)
• BBW King Kobra style Handlebar controls & Levers

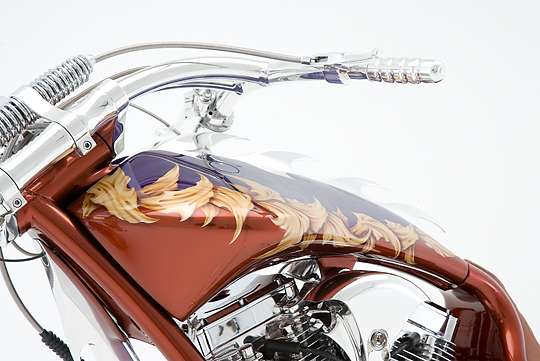

• BBW King Kobra Radius style Handlebars available in
choice of rise & pullback
Available Options:
• Powdercoating on Front End - Springs, forks, Handlebars, etc.
• Powdercoat Accent on Forward controls
WHEELS & TIRES:
Standard Features:
• Choice of BBW Wheels styles

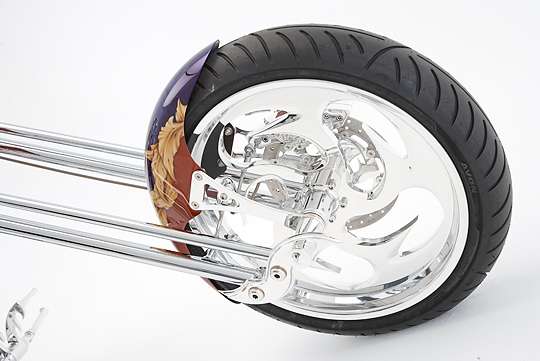

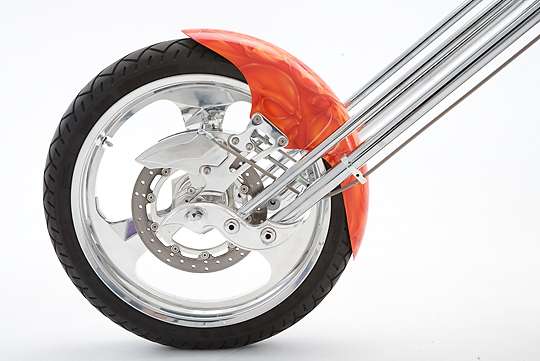

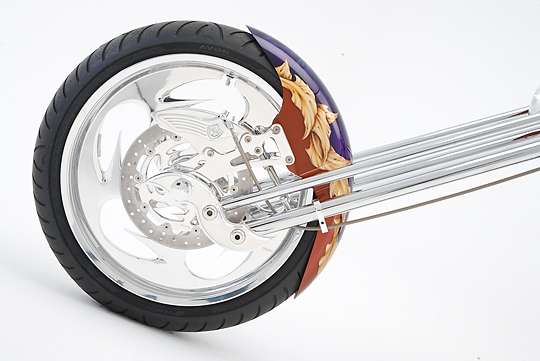

• 23" x 3.50" Front Wheel and Avon 130-60-23 Front Tire

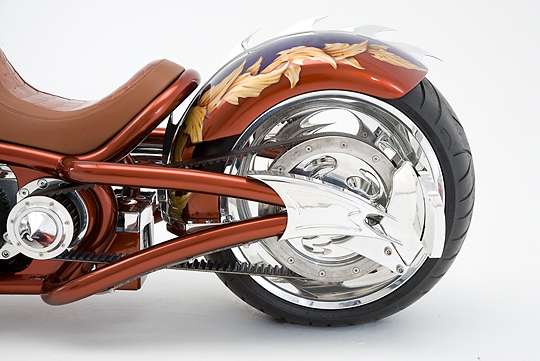

• 17" x 11.50" Rear with 330 Tire
LIGHTS, GAUGES, MISC.:
Standard Features:
• Digital Speedo w/indicator lights on Handlebars - or -
Mini Digital Speedo only mounted to Rocker Box
• BBW King Kobra Radius LED License Plate/Tail Light
bracket
• Headwinds Billet Headlight - 4-1/2" or 5-3/4" styles
• BBW King Kobra mirrors
• BBW LED Front & Rear turn signals and Billet switch
housings
• BBW Billet axle adjustor caps
PAINT & GRAPHICS:
Standard Features:

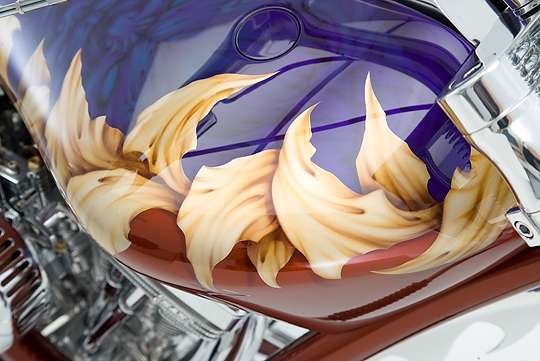

Choice of Paint Color and Graphics - $3500.00 is included in the base price for paint. The sky is the limit and will be charged for accordingly.
Available Options:
• Painted headlight
• Painted Tear drop air cleaner cover
SEATS - PASSENGER PADS - ETC.
Standard Features:

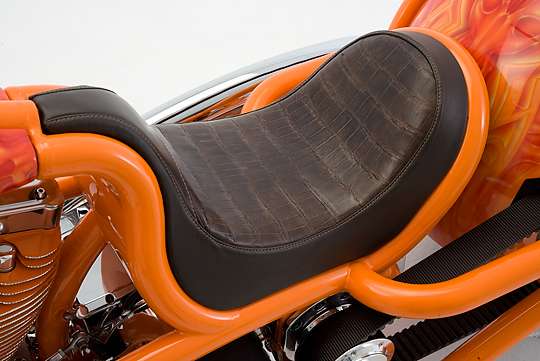

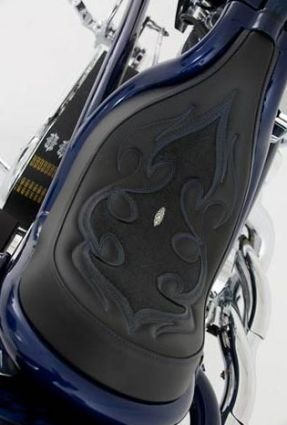

• Any color leather w/multi color coordinating stitching -includes matching passenger pad, and Air Dam Bra
Available Options:
• Snake Skin, Ostrich, Alligator, Crocodile, Stingray, Embossed Leathers and Imitation Exotic skins such as Alligator, Ostrich and others.
Note: Exotics include a leather side panel and exotic insert on rider's seat only - passenger seats and air dam bras are priced in addition to rider's seat.
• Gel Inserts in Rider's seat, Passenger seat or both
• Custom stitching on passenger seat
CHROME PACKAGES
Chrome Packages are available at an additional cost. BBW does NOT offer a warranty on chrome packages. Chrome Plate at your own risk!!
